Controlled from material receipt to dispatch
Quality you can verify. Components you can trace.
ERGIO connects material documentation, approved production information, manufacturing checks, component identification and dispatch verification into one controlled quality chain for professional timber projects.
Material receiptProduction checksPiece identificationDispatch release
Quality is a production system
Not a final inspection. A chain of controlled decisions.
For a large or serial timber programme, quality depends on controlling the information, the material and the handover between every stage — not simply checking the finished package at the end.
ERGIO's quality approach begins with agreed project requirements and documented material expectations. It continues through production engineering, machine release, in-process verification, component identification, packing and dispatch. The objective is predictable assembly and a clear route back to the approved source information whenever a question appears.
01Define
Agree material, visual, dimensional, processing and documentation criteria before release.
02Control
Check the inputs and production stages where an error can still be prevented.
03Identify
Connect each component and package to the project, unit, model and revision.
04Release
Verify completeness and supporting information before dispatch.
End-to-end traceability
Eight control points from supplier information to the site-ready package.
The exact evidence and acceptance criteria are defined by product, market and contract. The workflow below shows how ERGIO structures the quality chain.

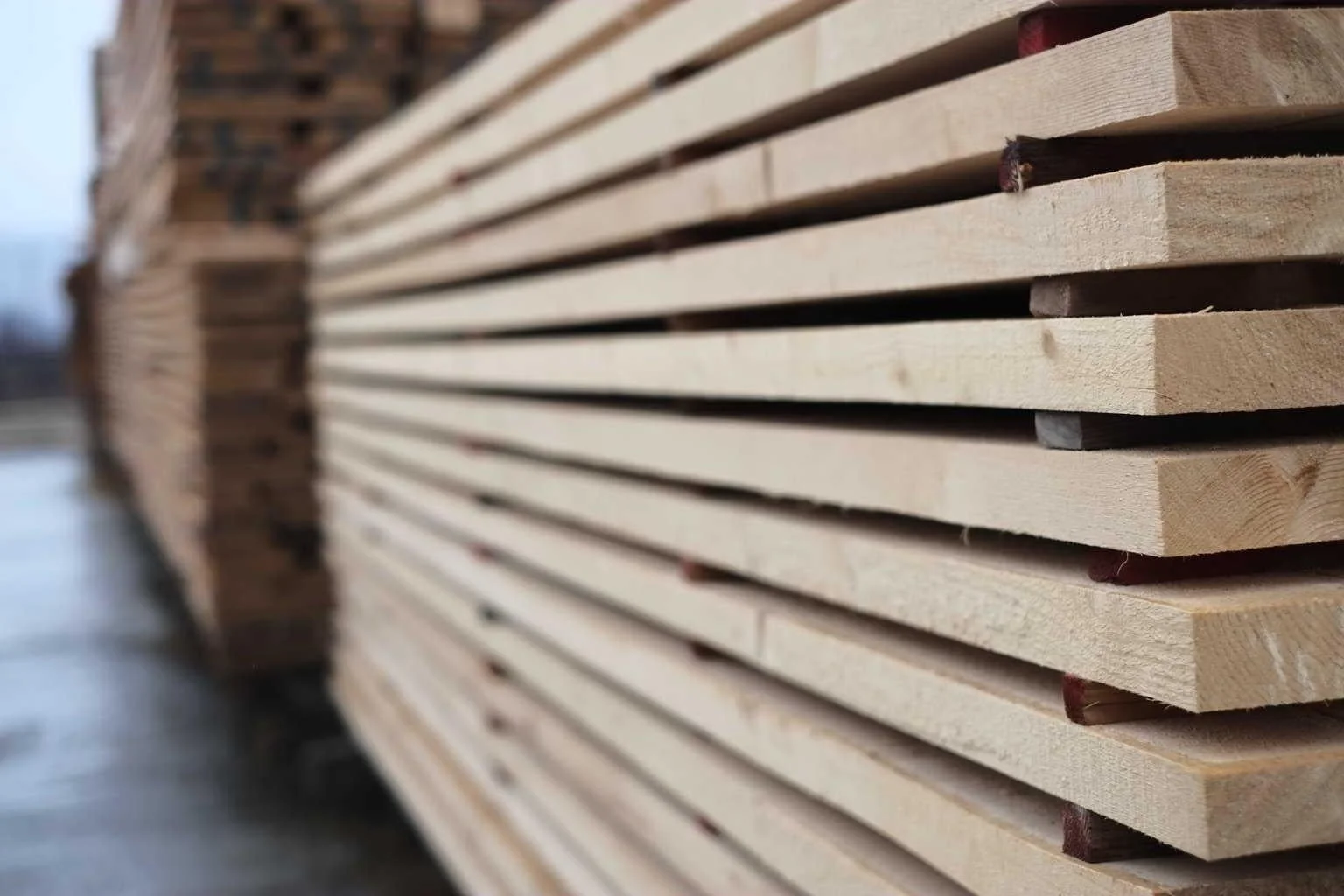

Supplier & material records
Material origin, species, strength class, visual requirement and applicable documentation are reviewed against the order.
Incoming material check
Material is assessed for the agreed characteristics before it enters the relevant production route.
Approved production release
The production team works from identified models, drawings, lists and revision status.
Machine setup & first-piece control
Critical geometry, processing logic and interfaces are verified before serial output continues.
In-process verification

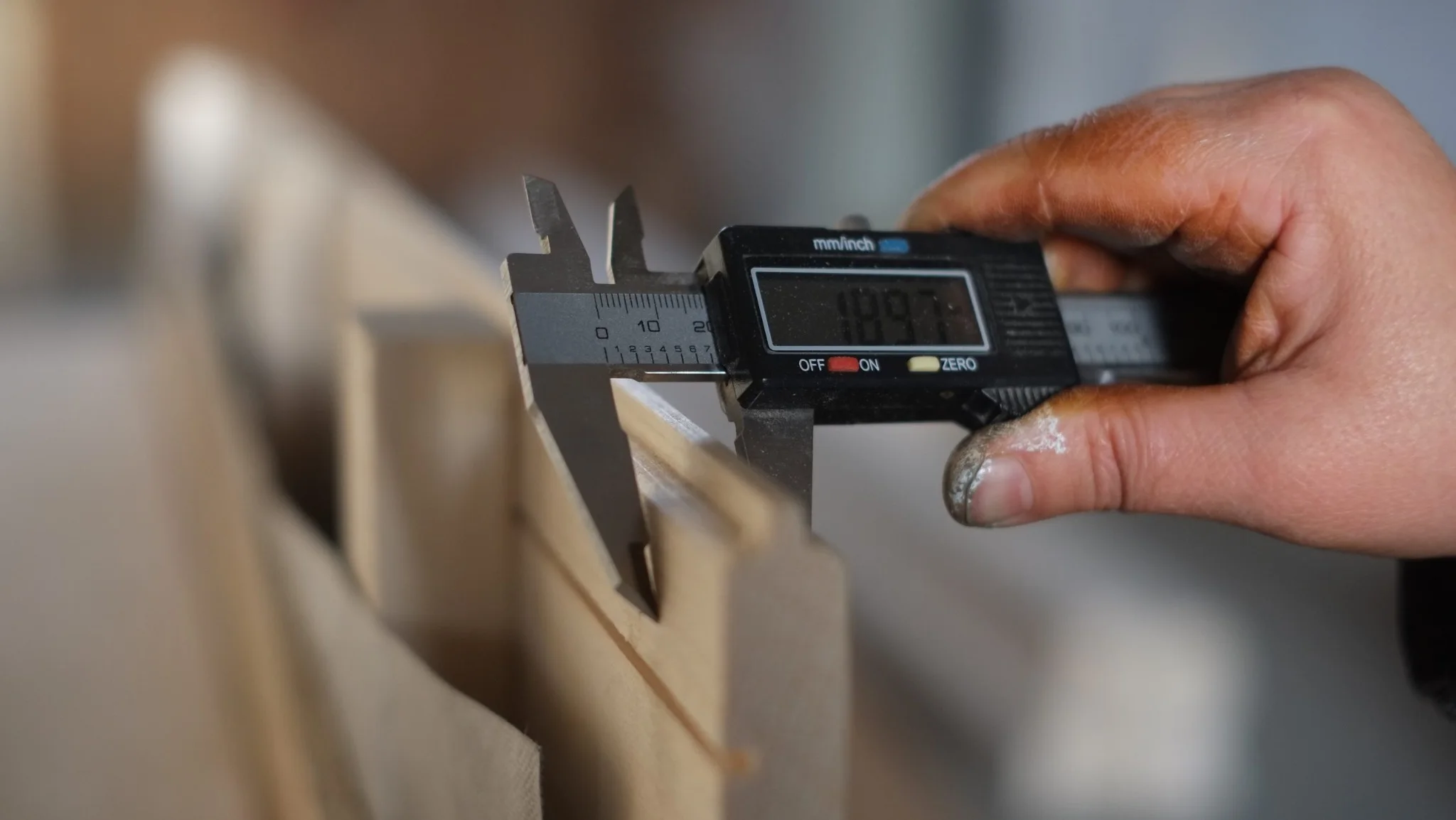

Dimensions, openings, machining, panel build-up and component condition are checked during manufacturing.
Component identification
Labels or marks connect members and panels to the project, unit, position and assembly information.
Package completeness
Components, connectors and agreed supplementary materials are grouped and checked against the packing logic.
Dispatch release
Loading, package references and agreed project documentation are verified before the shipment leaves the factory.
Quality gates
Check where prevention is still possible.
A controlled production process places checks before expensive downstream consequences: before machining, before repetitive production, before packing and before the vehicle leaves the factory.
Material readiness
- Order specification and material class
- Species and visual expectation
- Available supplier documentation

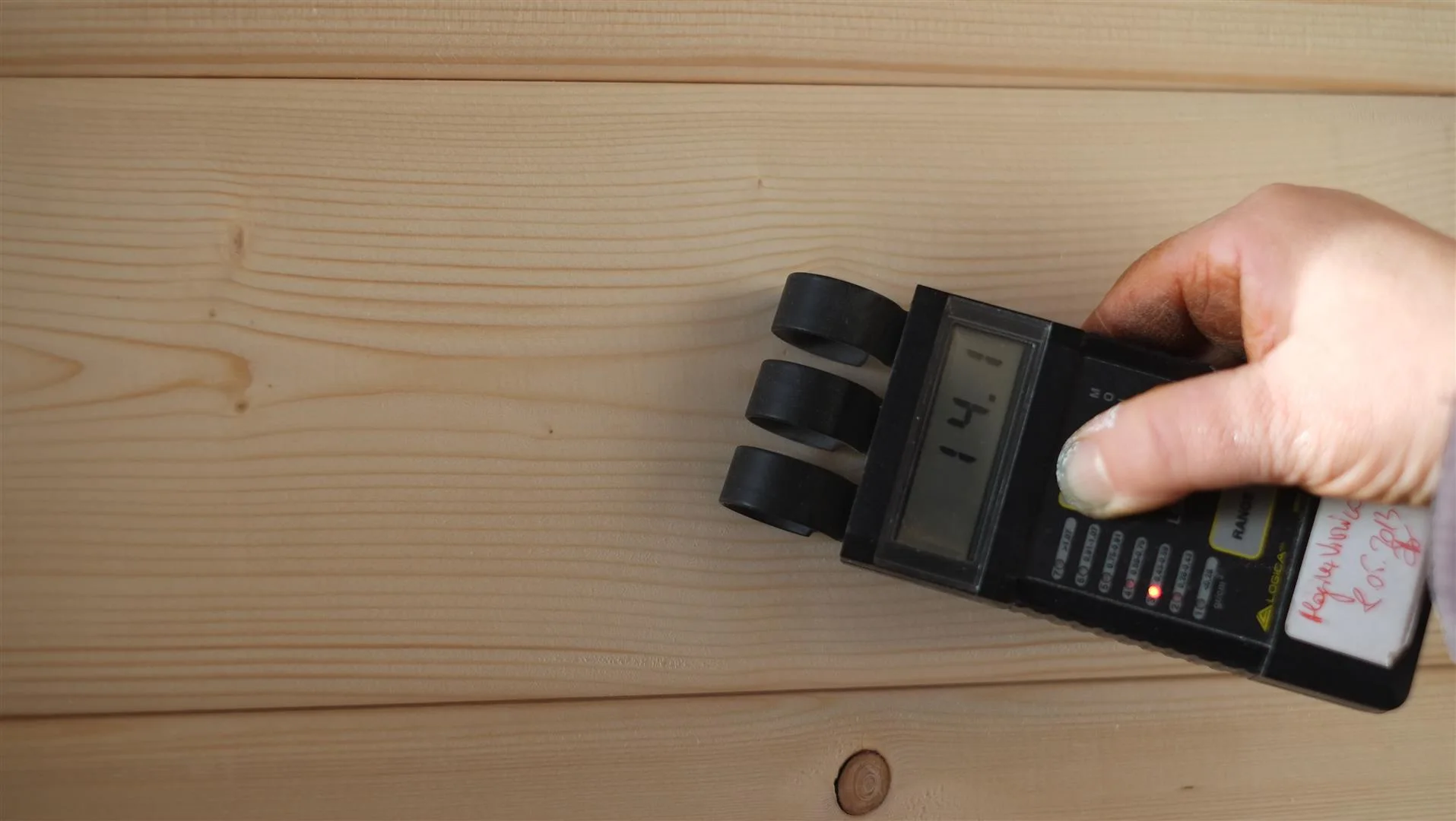

- Moisture or treatment requirements
- Segregation of unsuitable material
Production readiness
- Approved project revision
- Model and drawing coordination
- Piece list and production sequence
- Critical interface review
- Machine and tool-path logic
Manufacturing conformity
- Panel and member geometry
- Openings, holes, slots and notches
- Build-up and component position
- Visual condition where specified
- Identification and status
Dispatch completeness
- Package and unit allocation
- Connectors and agreed accessories
- Packing list reconciliation
- Loading and transport logic
- Release documentation
Material quality & documentation
Specify the timber. Confirm the evidence. Protect the project.
Depending on the product and order, ERGIO can supply fir and spruce from Nordic countries and Romania, C24 strength-class material and FSC- or PEFC-certified options. Applicable standards, declarations and chain-of-custody documentation are confirmed for each order.
The material package for a project should state exactly what is required: species, grade, strength class, visual quality, moisture range, treatment, chain-of-custody requirement and the declarations or certificates to be supplied.
Selected according to product, availability and the agreed project specification.
For relevant structural timber products, subject to order and documentation confirmation.
Chain-of-custody requirements must be identified during enquiry and quotation.
Specific declarations and applicability are verified for the supplied product.
Component identity
One part should answer more than one question.
A useful component reference helps the factory and the site understand where the element belongs, which approved information generated it, how it is grouped and in what sequence it should be handled.
01
What project and building? Separate programmes, phases and units without ambiguity.
02
Which component and revision? Connect the physical item to the controlled production model.
03
Which package and delivery? Support loading, receiving and staged site logistics.
04
Where does it assemble? Reduce searching and improvised sorting on site.

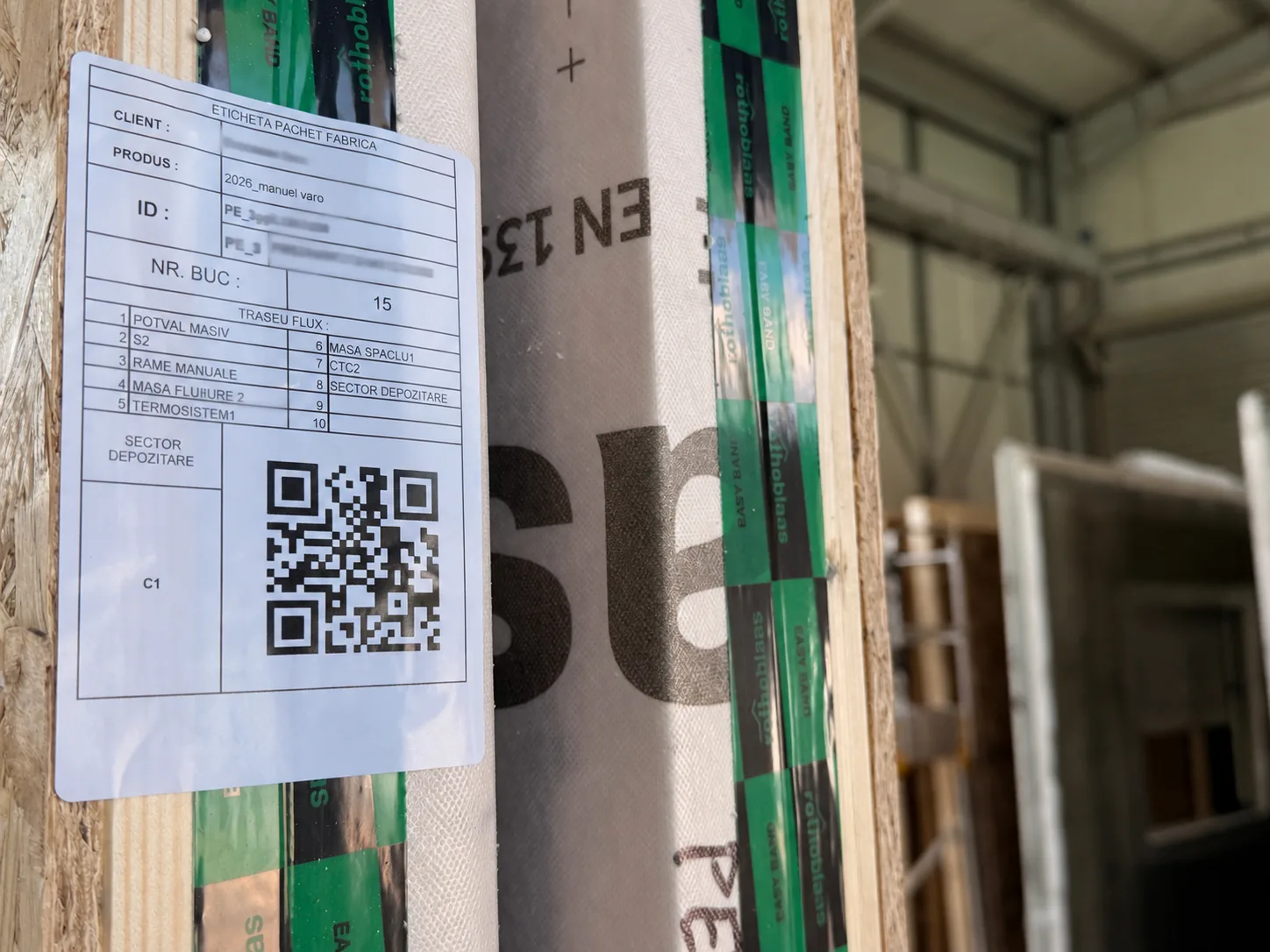

Factory labels combine project, component, package and routing information to support traceability through production, packing, dispatch and site handling.
System-specific controls
The quality plan follows what is being manufactured.
A panel, a machined beam and a log-wall profile do not carry the same risks. Select a system to see the principal control focus.
Timber Frame quality focus
Geometry, openings, build-up and panel interfaces.
Panel quality depends on the coordination between the production model, structural timber, sheathing, membranes, insulation and the details that connect one element to another.
- Panel dimensions and squareness
- Stud, rail and header position
- Window and door openings
- Layer sequence and specified materials
- Connection zones and lifting/handling details
- Panel label and building-position reference
Post & Beam quality focus
Machining accuracy, orientation and connector interfaces.
Each member must correspond to the approved structural information and the assembly logic defined by the project team.
- Section, length and member orientation
- Holes, slots, notches and cuts
- Hidden or visible connector geometry
- Column bases and anchor interfaces
- Visual face requirement
- Piece mark and assembly sequence
Log House quality focus
Profile consistency, joints, openings and finish expectation.
Wall profiles, corners and openings must remain coordinated across the complete kit, including elements that interact with floors, roofs, structural framing and joinery.
- Profile type and wall thickness
- Corner and longitudinal joints
- Openings and settlement allowances
- Moisture and treatment requirement
- Visible surface expectation
- Wall-course and package identification
Nonconformity & corrective action
A problem is controlled by making it visible early.
When an item does not meet the approved requirement, the objective is to stop unintended use, understand the impact and close the issue with an agreed corrective action.
Explore Factory & Technology ↗Identify & isolate
Separate the component or material so that it cannot continue unnoticed through the process.
Record & assess
Reference the project, component, requirement and potential effect on production, logistics or site.
Decide the disposition
Correct, remake, replace or obtain an authorised technical decision from the responsible project party.
Verify & close
Confirm the action, update the relevant status and prevent an incorrect item from being released.
Packing & dispatch completeness
The quality chain continues after manufacturing.
For multi-unit and phased programmes, a technically correct component can still create site disruption when it is packed into the wrong group or delivered in an unusable sequence. Packing logic is therefore treated as part of production planning.
01
Group by programme logic
Building, unit, level, elevation, assembly zone or delivery phase.
02
Reconcile the package
Check components, connectors and agreed supplementary materials against the relevant list.
03
Protect for handling
Define supports, wrapping and edge or end protection appropriate to the product and route.
04
Release the shipment
Coordinate package references, transport information and site receiving requirements.
Questions from professional partners
Quality, certification and project evidence.
Final commitments are stated in the quotation, technical specification and contract for the actual product supplied.
Is every ERGIO product supplied with the same certificates?+
No. The relevant declarations, certificates and chain-of-custody documents depend on the timber product, supplier, processing route, project specification and market. Required evidence should be stated during enquiry and confirmed in the offer.
Can ERGIO provide FSC- or PEFC-certified material?+
FSC- and PEFC-certified material can be supplied subject to product, source and order requirements. Availability and the applicable chain-of-custody documentation are confirmed before procurement.
How are components connected to the project model?+
Production references, piece marks, labels and package identifiers can link physical components to the project, building, position and revision. The exact coding and data retained are defined by the production and ERP workflow.
Can our team audit the factory or review quality procedures?+
Qualified B2B partners can request a factory visit, supplier-qualification discussion or project-specific quality review. The agenda and documents shared depend on the commercial stage and confidentiality requirements.
Does ERGIO perform structural approval?+
No. Structural design, calculations and approval remain with the partner's appointed structural engineer. ERGIO checks manufacturing conformity against the approved production information and agreed scope.
What happens when a missing or incorrect component is identified on site?+
The issue is referenced to the project and component information, assessed with the responsible teams and resolved as quickly as possible. The contractual cause, corrective action and cost responsibility are documented for the specific case.
Supplier qualification or project review
Tell us what evidence your project requires.
Share the target market, product scope, material requirements, requested certificates, quality plan expectations and project programme. ERGIO will confirm what can be supplied and how the quality chain should be structured.
DevelopersGeneral contractorsTimber specialistsDistributorsArchitects & engineers
Professional B2B enquiry
Request a quality and traceability review.
Suitable for project qualification, factory audits, recurrent supply agreements and large or serial timber programmes.
