Completed residence · Spain · Timber Frame
Jose Mannises
180 m² of Timber Frame construction in Manises, Valencia, combining clean contemporary architecture with a layered, factory-prepared wall system.

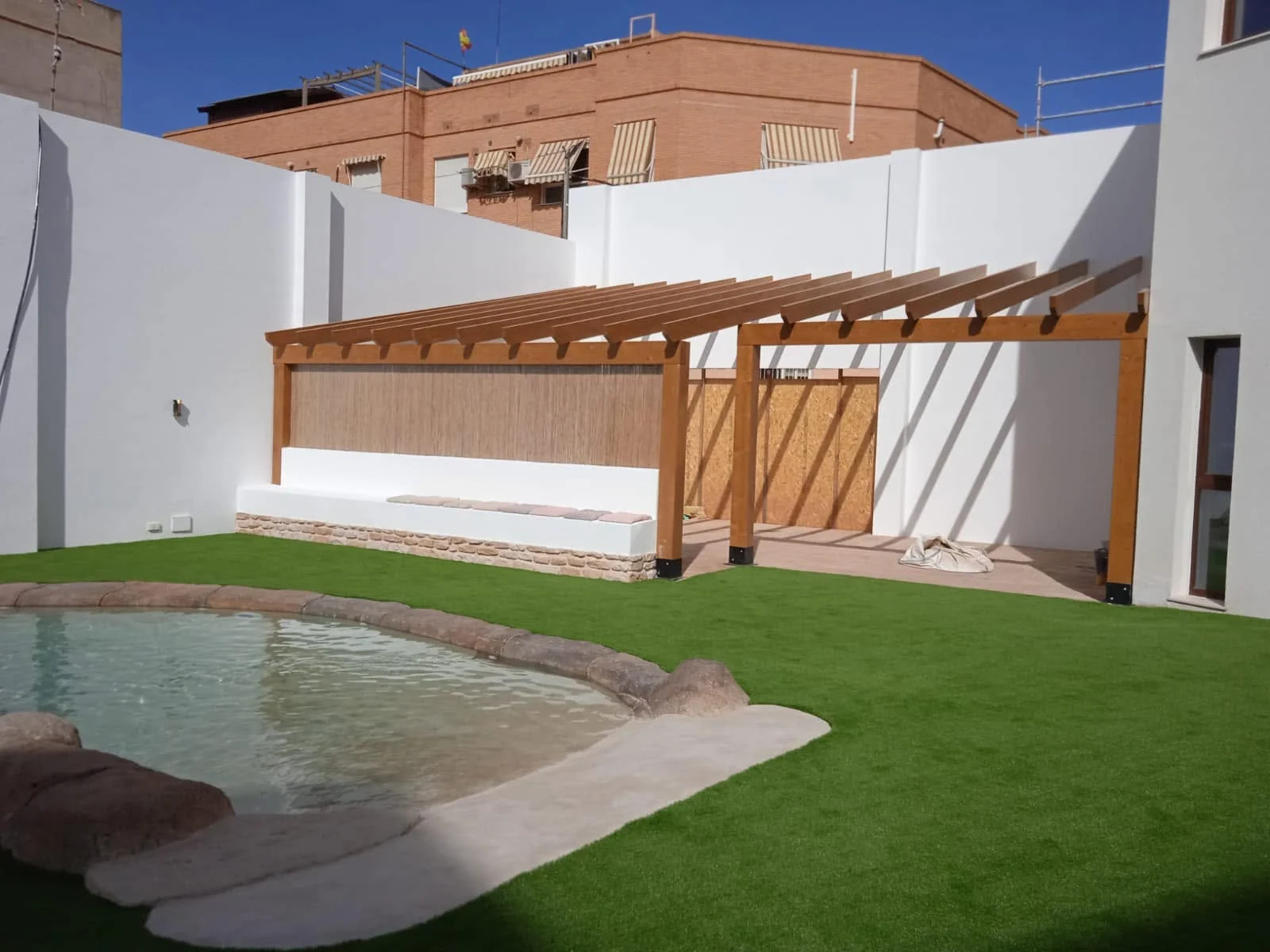

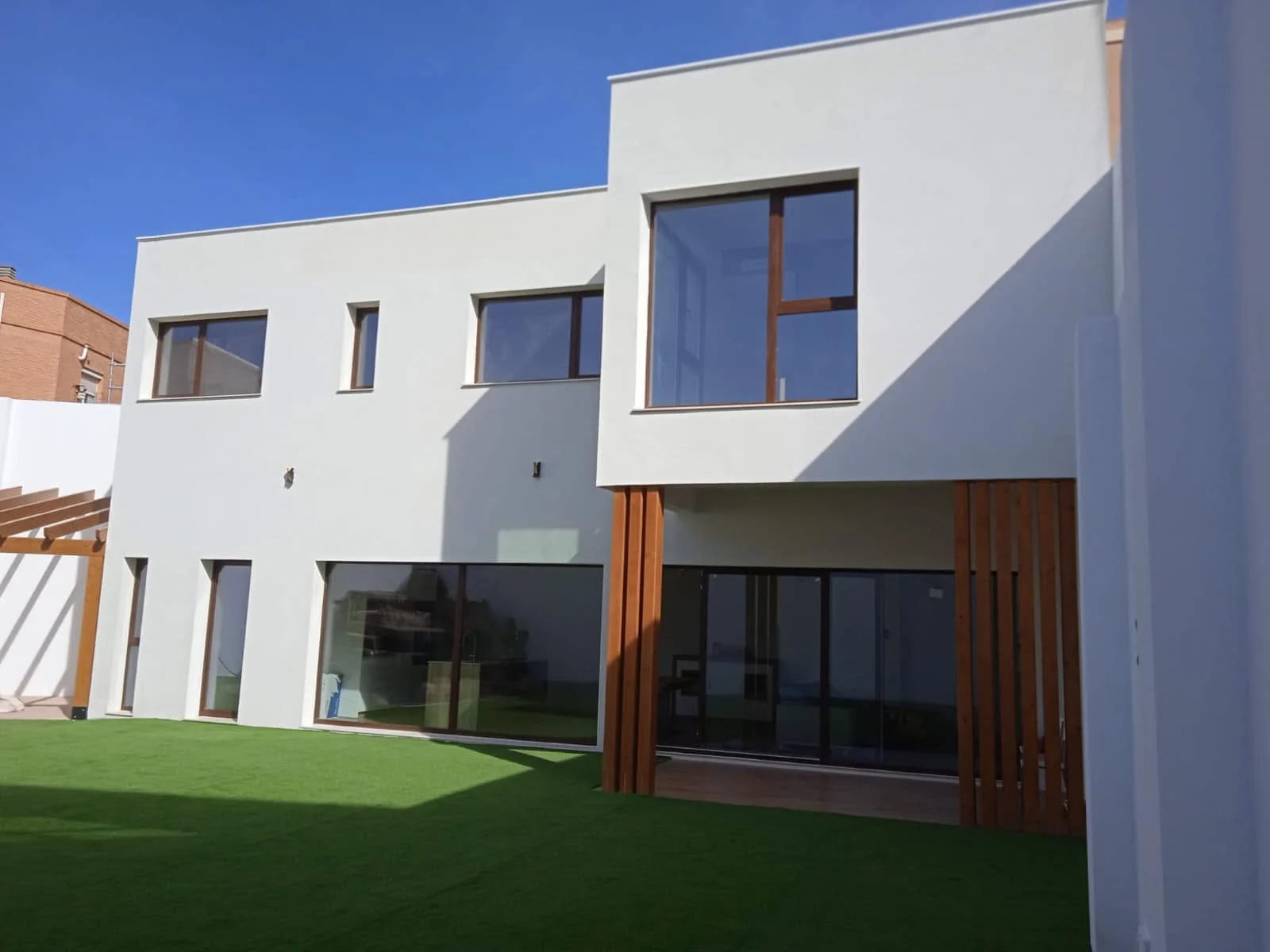

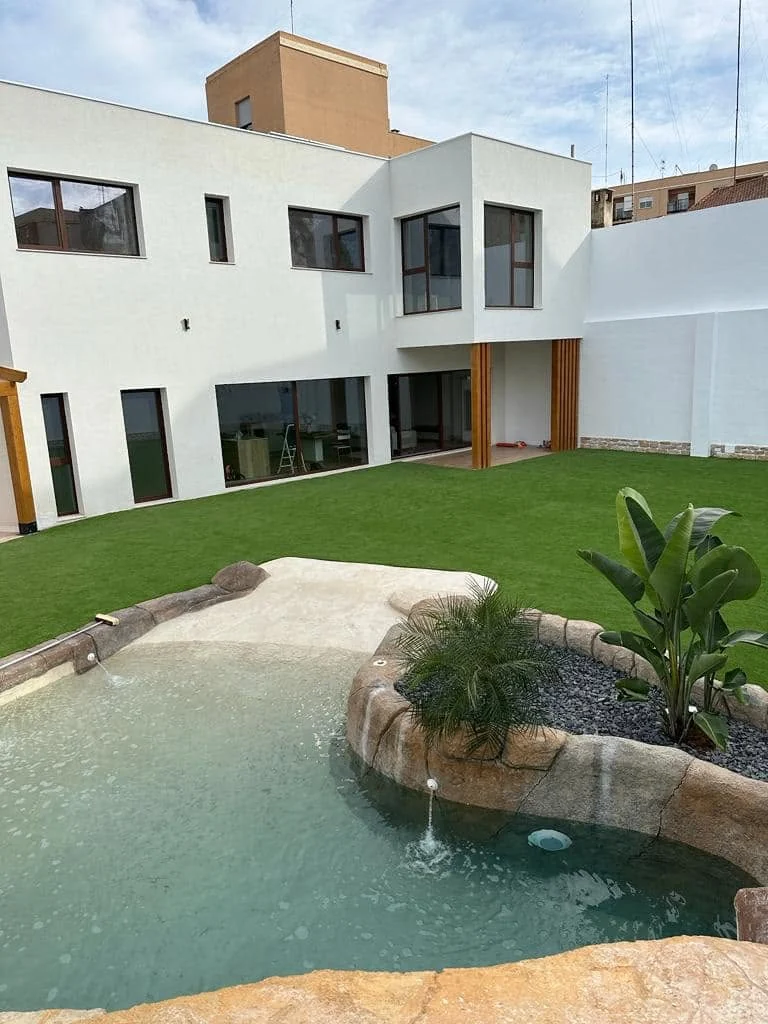

A restrained white exterior, generous covered outdoor space and bright interiors translate a technically coordinated timber structure into a calm Mediterranean home.
Project overview
Manises architectural character translated into a contemporary Timber Frame home.
Jose Mannises is a 180 m² Timber Frame residence in Manises, Valencia. The design draws on the city’s mix of traditional and contemporary architecture, using clean white volumes and precise geometric lines to create a distinctly Mediterranean result.
The exterior walls use 150 × 45 mm timber framing with mineral wool insulation, OSB sheathing and a vapour-control membrane. Internally the wall is finished with 12.5 mm plasterboard, while the exterior receives polystyrene insulation and decorative render.
The interior partitions use 100 × 45 mm timber framing, sound-absorbing mineral wool, OSB, plasterboard and a white painted finish.
Technical configuration
A coordinated layered envelope for thermal, acoustic and moisture performance.
Exterior frame
150 × 45 mmTimber framing forms the primary structural layer of the exterior walls.
Exterior insulation
Mineral woolThermal insulation is integrated within the timber-frame cavities.
Sheathing and vapour control
OSB + membraneOSB sheathing works with a vapour-control membrane to manage moisture movement through the timber envelope.
Exterior-wall finishes
Plasterboard + insulated render12.5 mm plasterboard internally; externally, polystyrene insulation and decorative render.
Interior walls
100 × 45 mmTimber framing with sound-absorbing mineral wool, OSB, plasterboard and a white painted finish.
Why this project matters
A clean architectural result supported by disciplined envelope design.
Jose Mannises demonstrates how a modest material palette can sit on top of a technically layered prefabricated timber system.
Mediterranean expression
Flat-roof volumes, white rendered façades and sheltered outdoor space create a distinctly contemporary Spanish character.
Thermal envelope
Mineral wool and the exterior insulation layer provide a robust, layered approach to comfort.
Acoustic partitions
Sound-absorbing insulation within interior walls supports quieter living spaces.
Factory coordination
Defined wall build-ups reduce uncertainty and help translate the architectural intent into an assembly-ready package.
Factory to site
From client plans to a coordinated Timber Frame envelope.
The finished simplicity is the result of a sequence where geometry, layers and interfaces are resolved before assembly.
Client plans
Architectural information defines the volume, openings and desired façade language.
Production engineering
The wall system is translated into manufacturable timber panels and clearly defined layer build-ups.
Factory preparation
Structural framing, boards and specified membranes are prepared to support a predictable site sequence.
Site assembly
The prefabricated package is assembled into the final 180 m² residence in Manises.
