Calcott Retreat

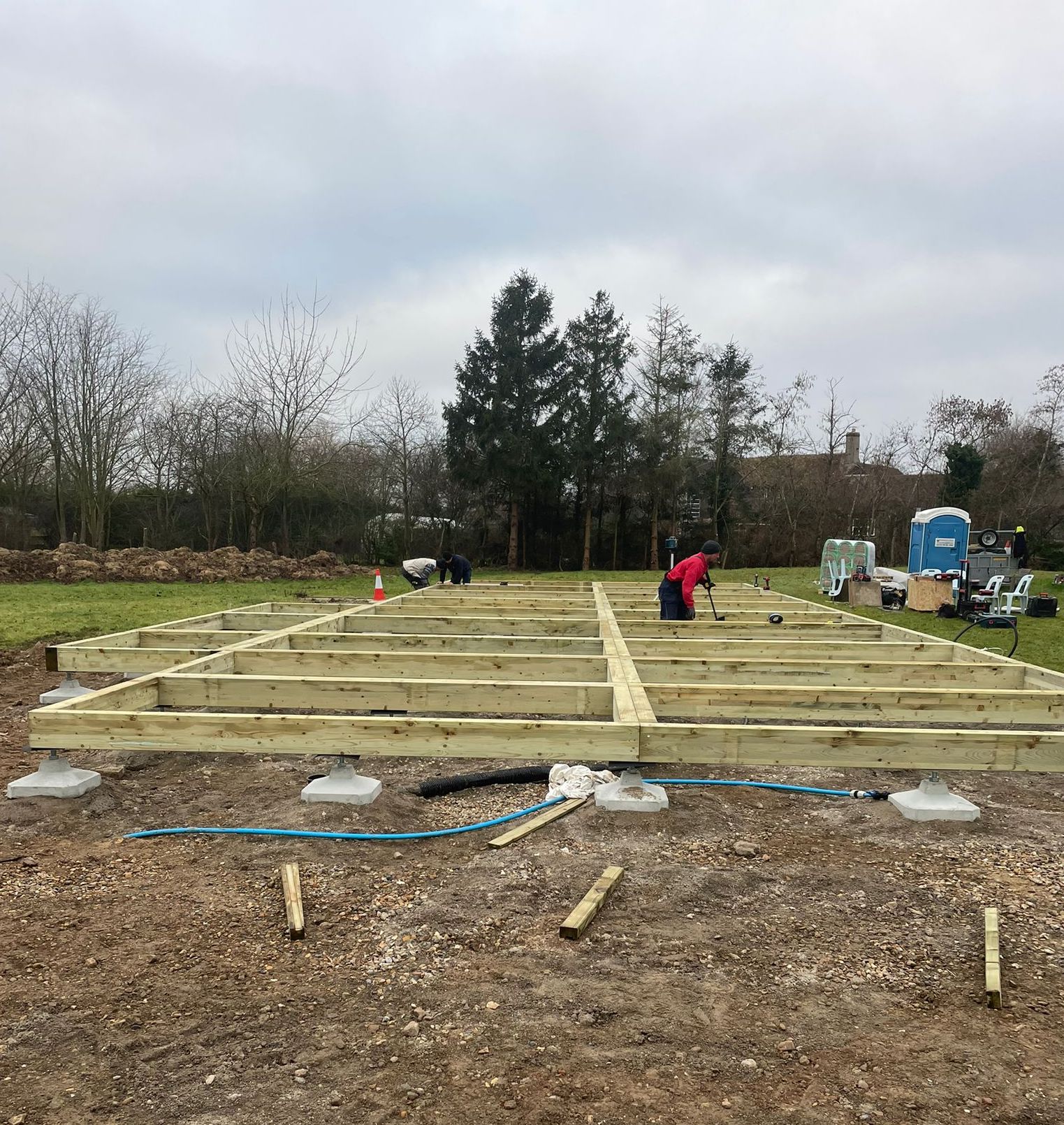

The building has an area of 127m2, encloses around 50 cubic meters of wood and rests upon 54 easy pads, which are the perfect replacement for the traditional concrete foundation.

We used 150x45mm structure studs for the exterior walls, insulated with Isover Domo 150mm mineral wool and equipped with 12mm OSB, a Rothoblaas Vapour In 120 membrane and 12,5mm plasterboard, finishing the wall with a high breathable membrane Traspir 110 Rothoblaas and a 28mm vertical wood cladding.

The interior walls have a 100x45mm framing structure, with 100mm Isover Domo mineral wool insulation, Rothoblaas Vapour IN 120 membrane, 12mm OSB and 12,5mm plasterboard.

https://www.instagram.com/ergio_woodenconstructions

Surface

172m2

Location

UK
